Most of the machine has been sold through various channels,
eBay mostly.
I do still have a few pieces left if anyone is interested in them, I have marked
them with prices in the list below.
I also have the playfield glass, but can't imagine trying to ship that anywhere.
Please note, prices do NOT include whatever shipping you choose.
NOTE: These are thumbnail images - click the image to enlarge)
These are digital photos - only mods to photos were to lighten shadows and resize to 640x480. Photos are listed in no particular order.

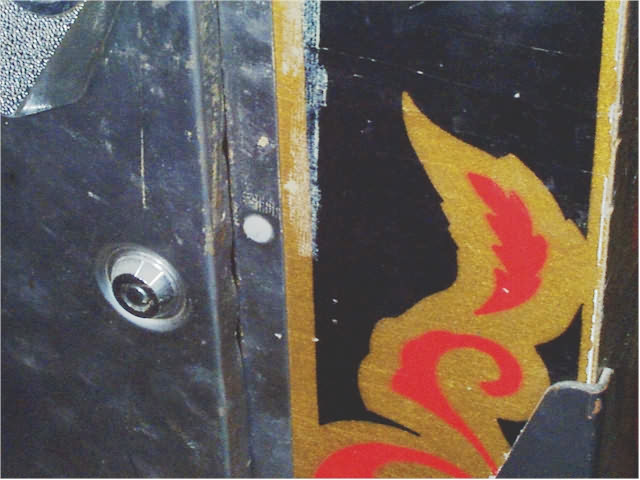

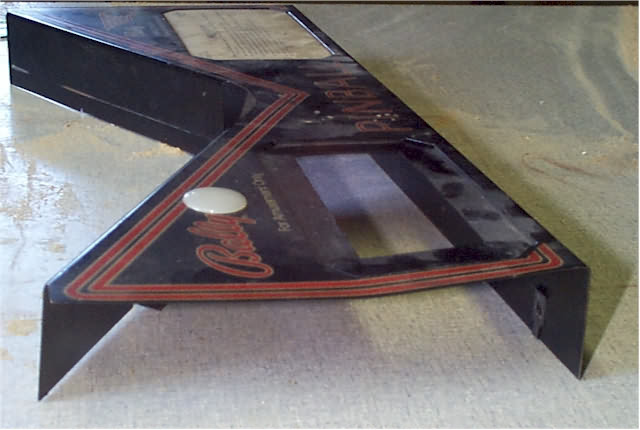

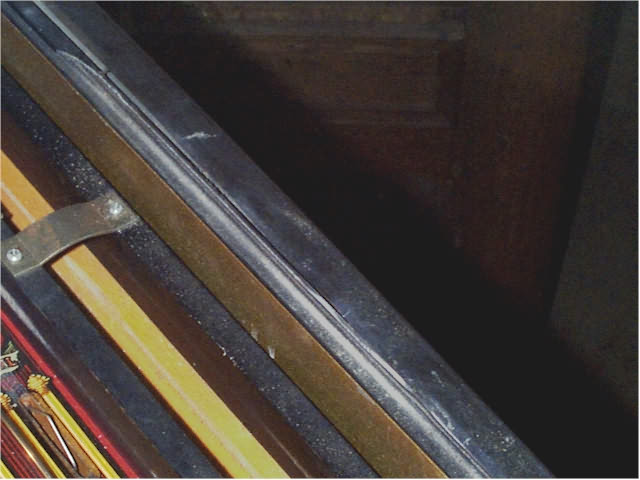

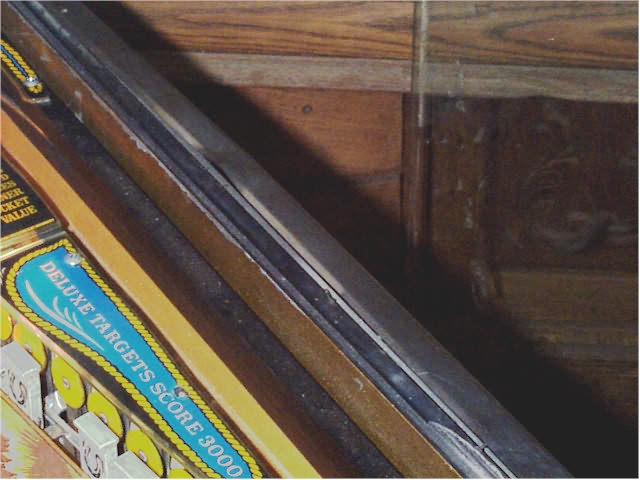

Damage - From the damage shown, it appears someone tried to open this up and did not know how

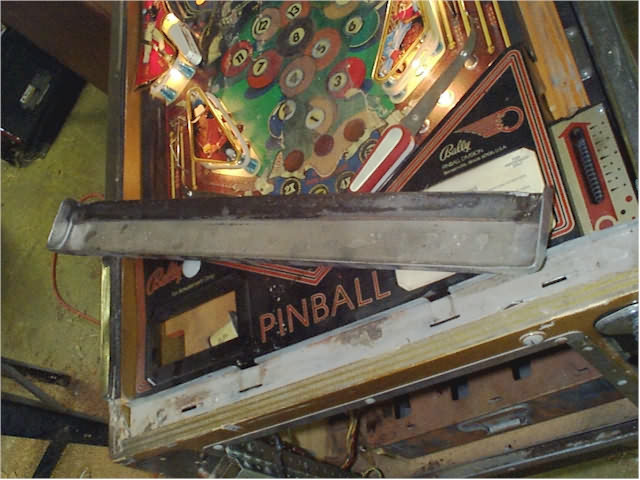

End Cap - More evidence of damage - note the tabs that stick into the machine to lock against have been removed. These are in the machine but would have to be welded back on.

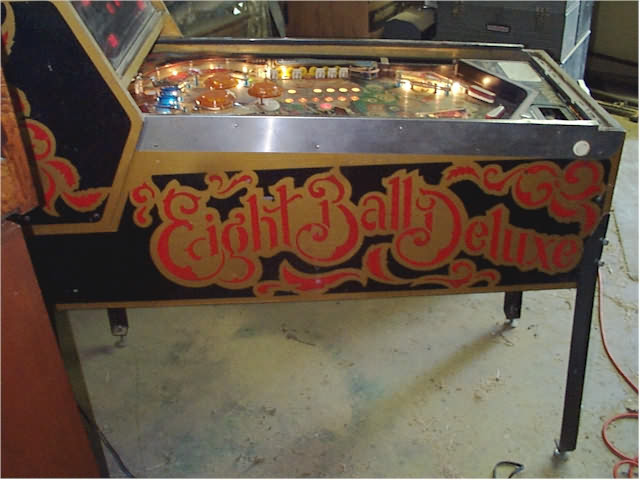

Left Side of Machine

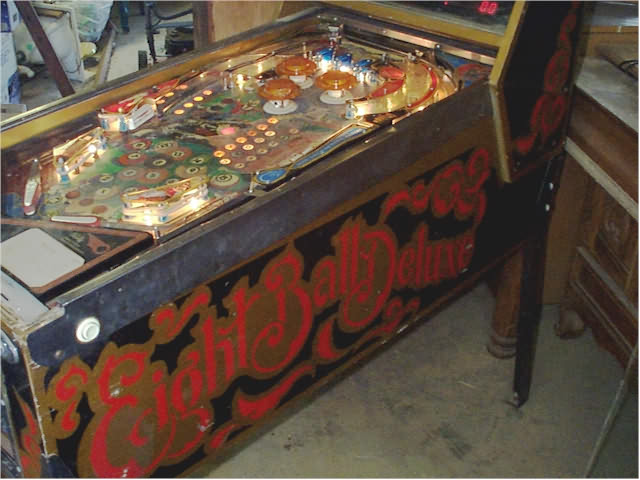

Right Side of Machine

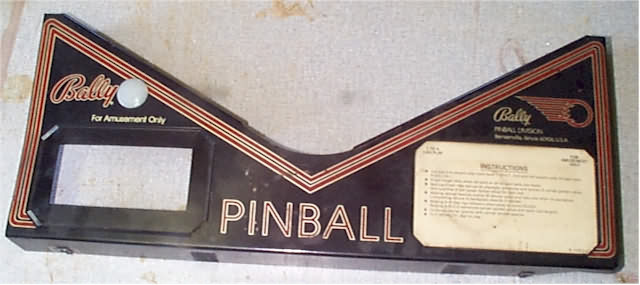

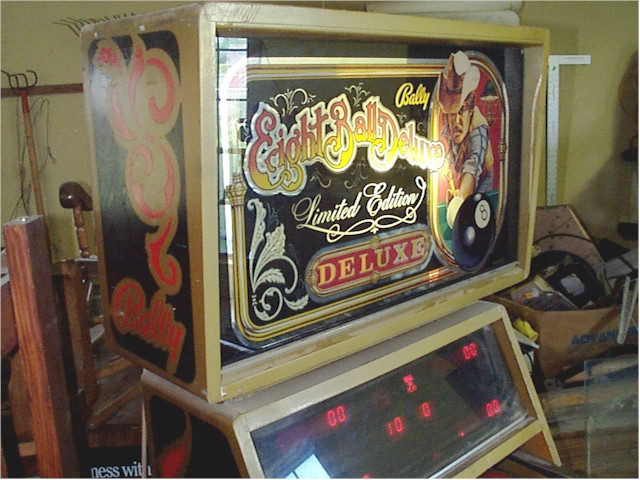

Top of Machine

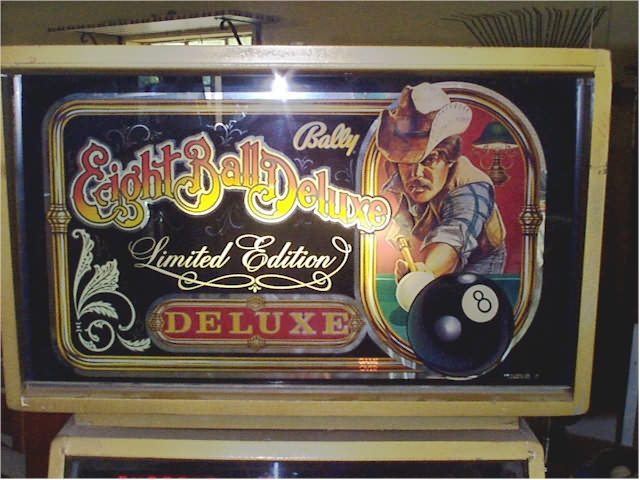

A couple of flaws I see on the back of the mirror -
A scratch that is not apparent from the front side

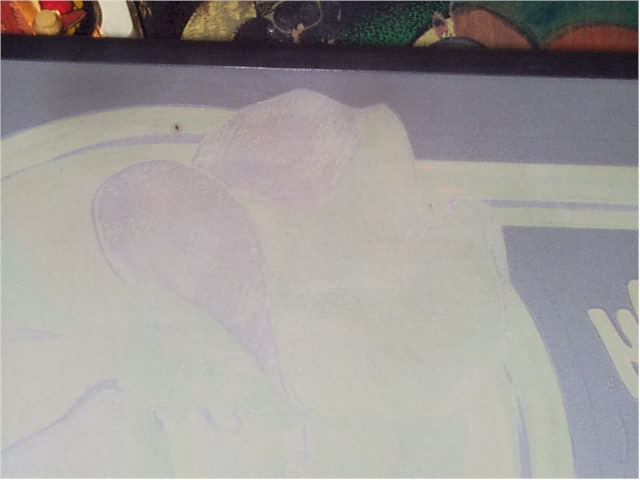

A spot - looks like grease to me, but also not apparent from the front side - could be a possible source of future peeling though

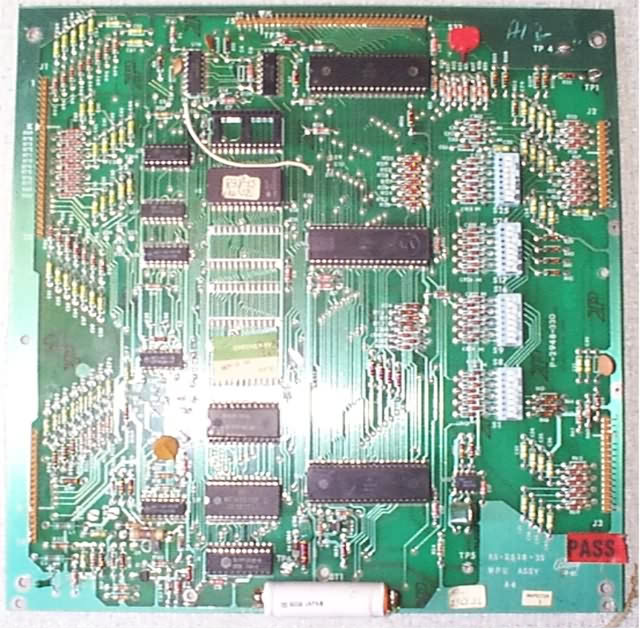

Part No.: AS-2518-35
Note some corrosion on solder joints of battery.

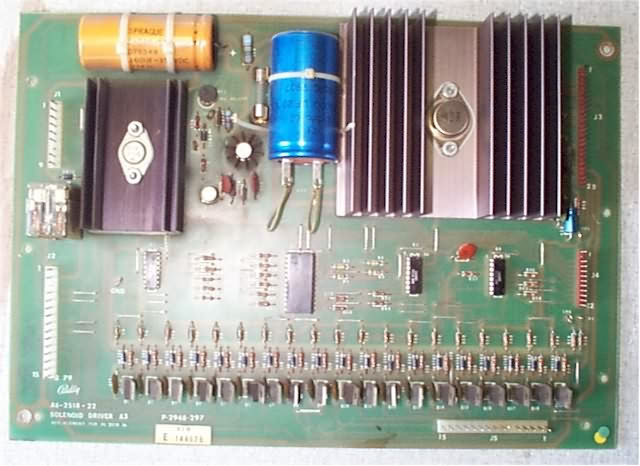

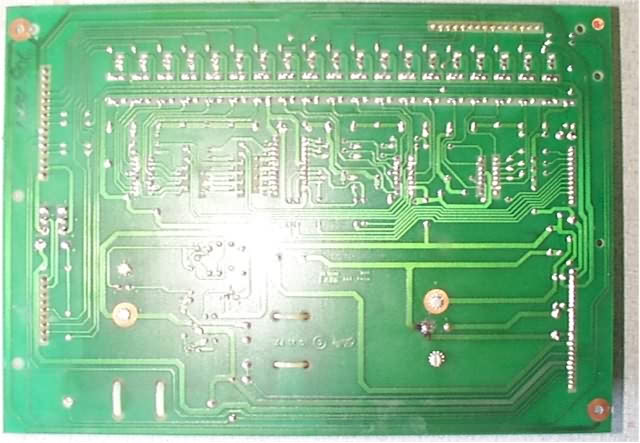

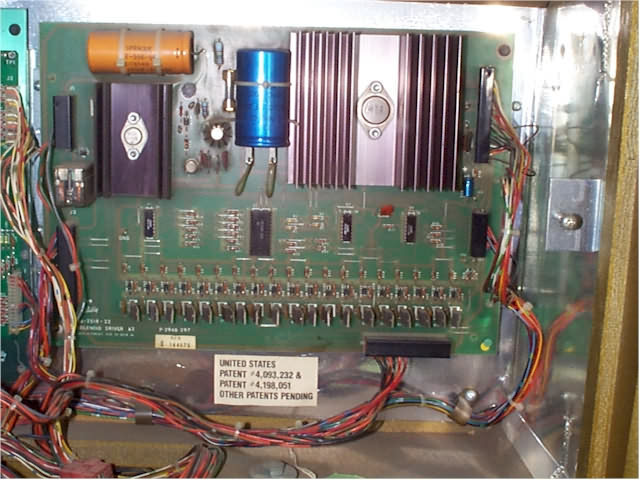

Solenoid Driver Board - (SOLD)
Part No.: AS-2518-22
Part No.: AS-2518-23

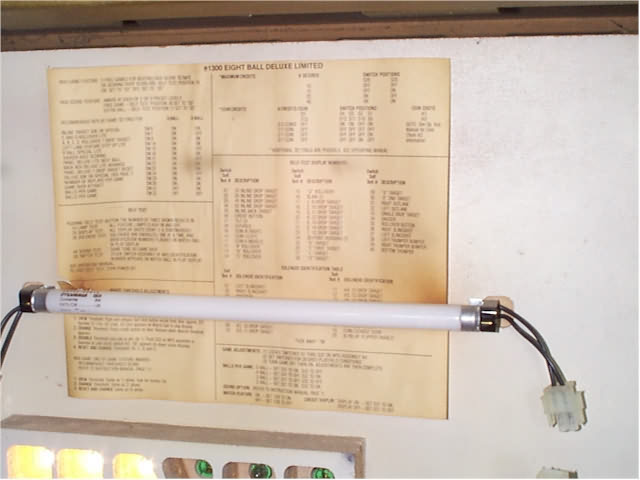

Paper mounted behind mirror ($2)

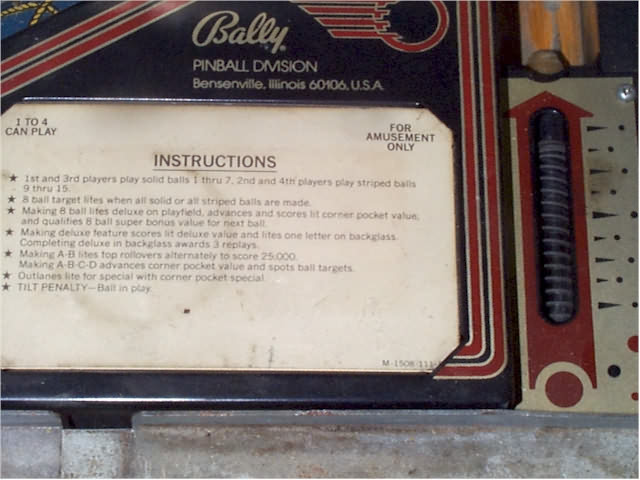

Instruction Card SOLD

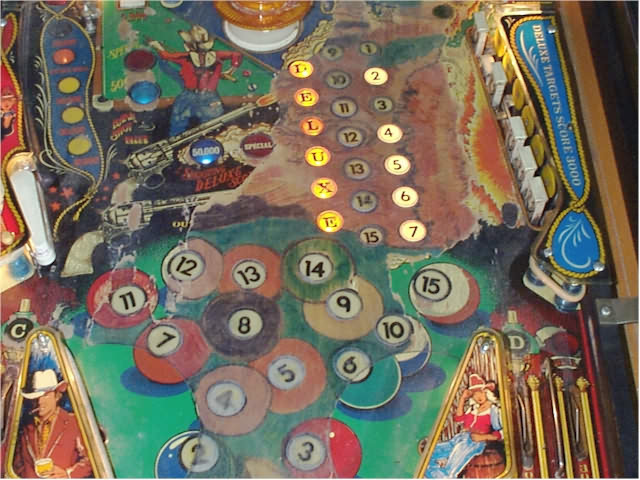

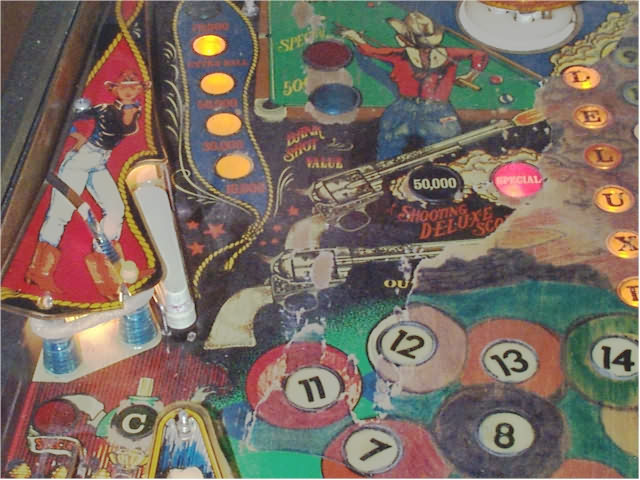

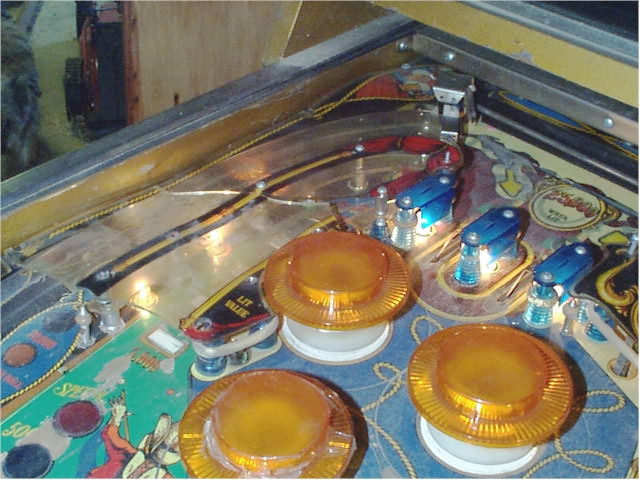

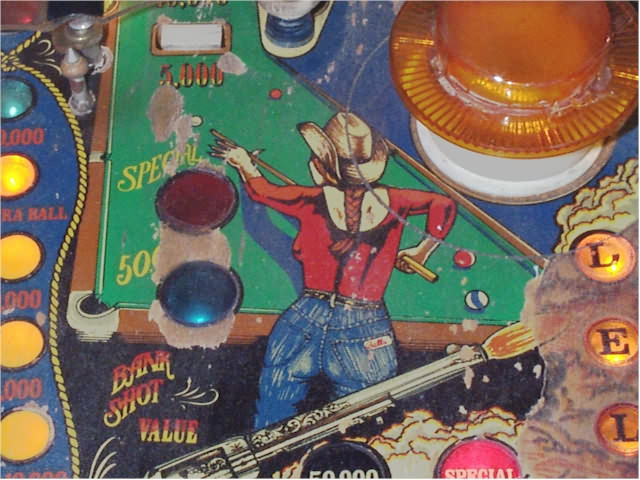

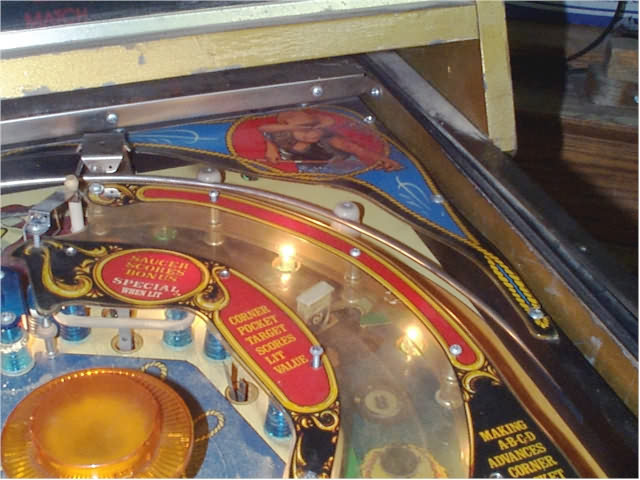

Various shots of the playfield showing damage from what appears to be something spilled on it - Also shots of the various plastic pieces - note the warping probably from heat/sun exposure and that some of the plastics are busted.

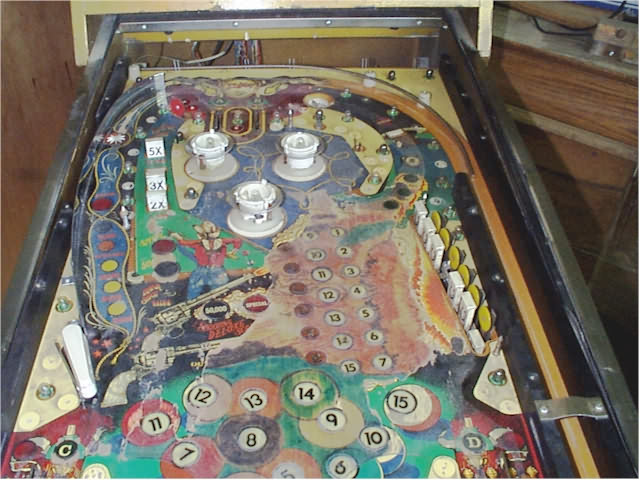

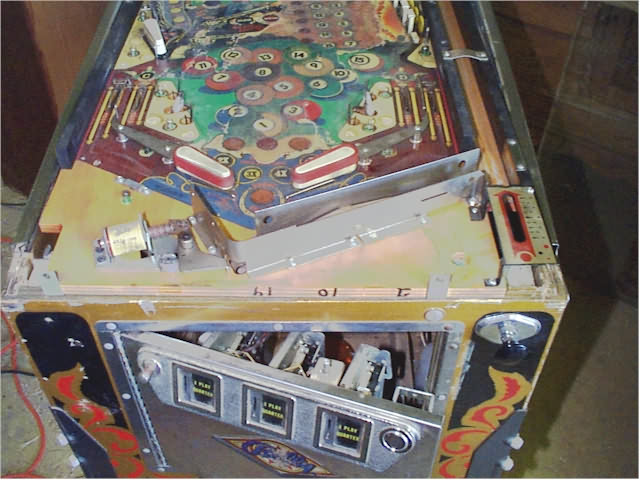

More playfield shots after many parts removed from playfield top.

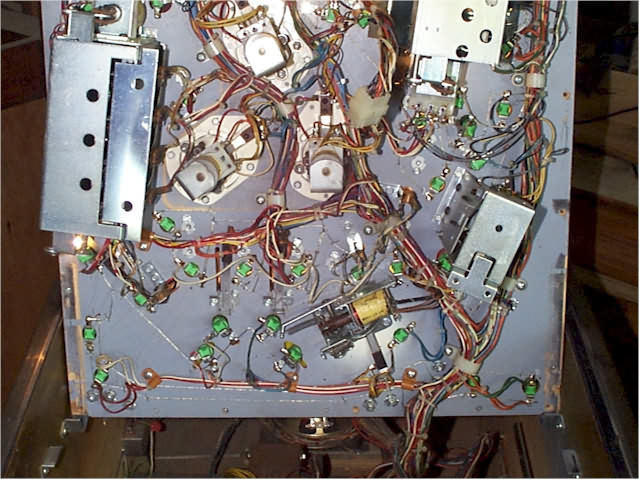

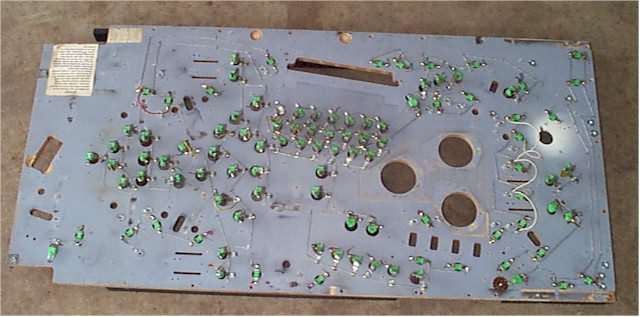

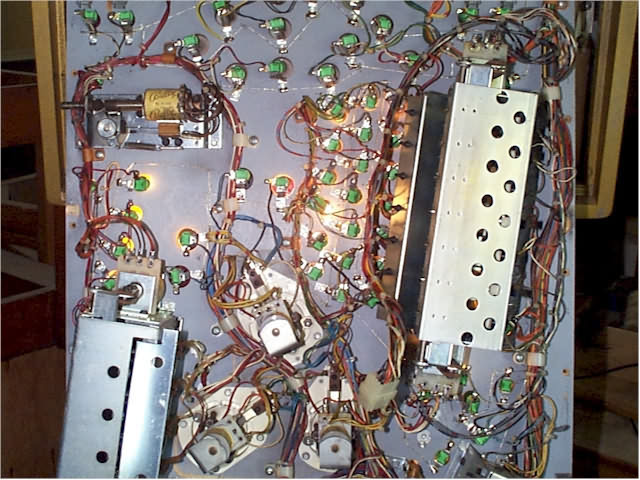

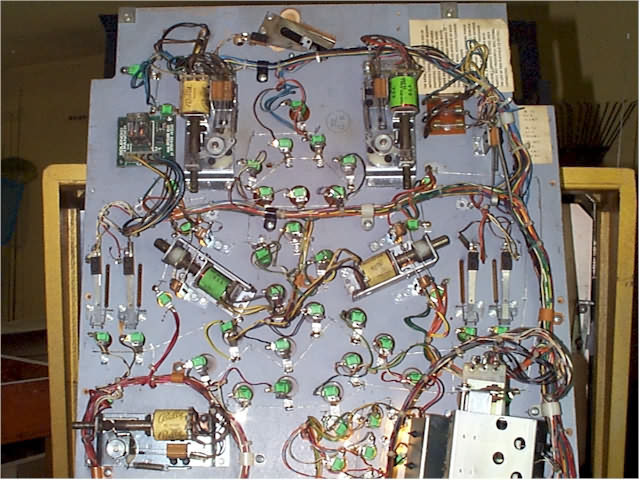

FWIW, here's the backside of the playfield

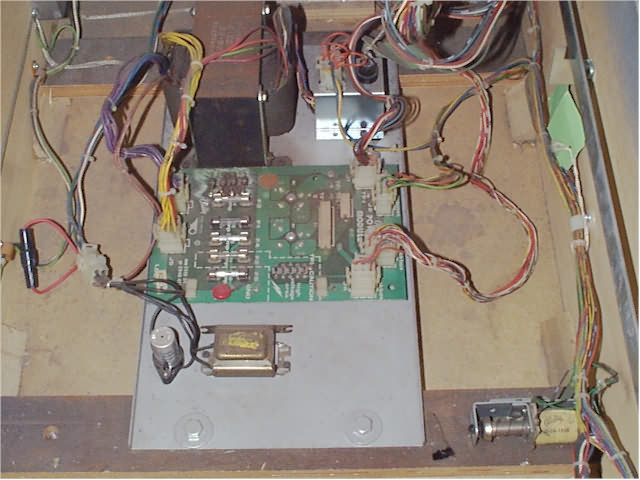

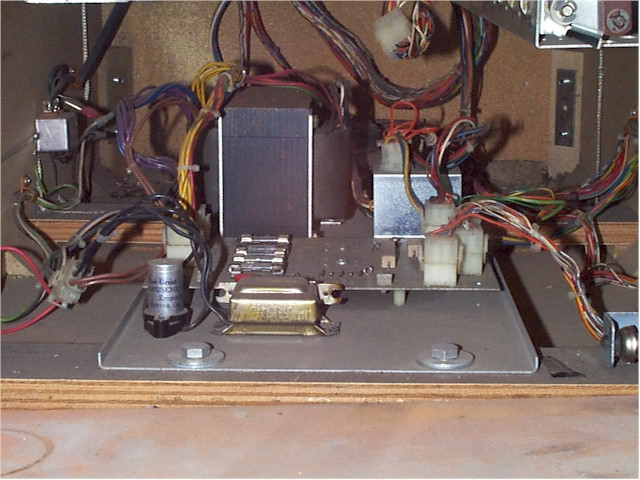

A couple of shots of the Power Supply Unit (SOLD)

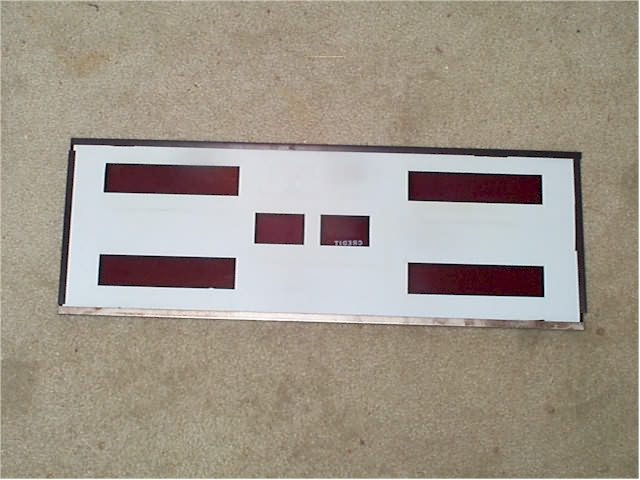

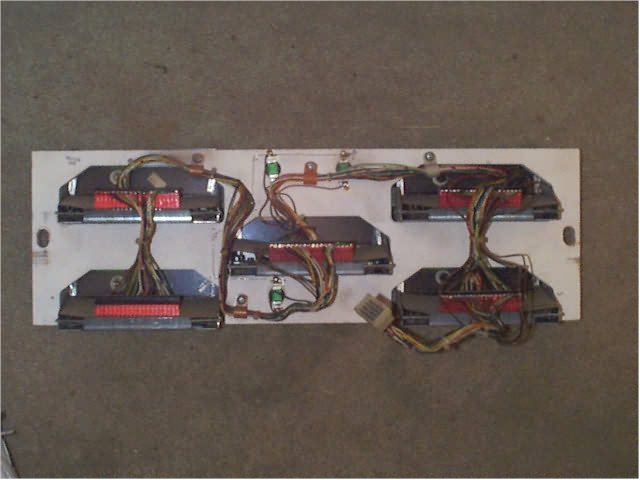

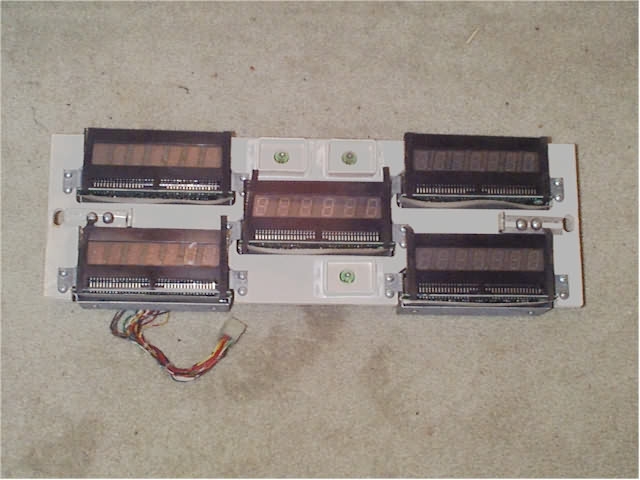

Panel with 7 digit display and center display (SOLD)
Red Plexiglas Panel that covers above 7 digit display units -(SOLD)

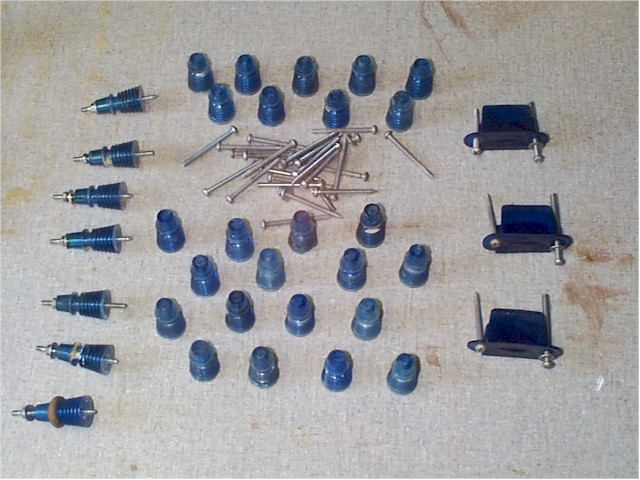

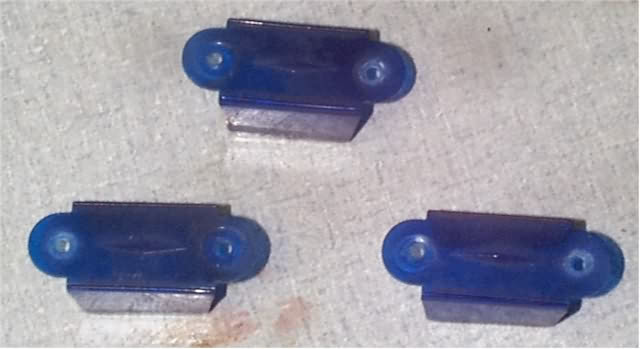

Blue Posts - 9 short, 16 tall, 7 with studs, and the 3 blue plastic covers for the upper channels.
SOLD

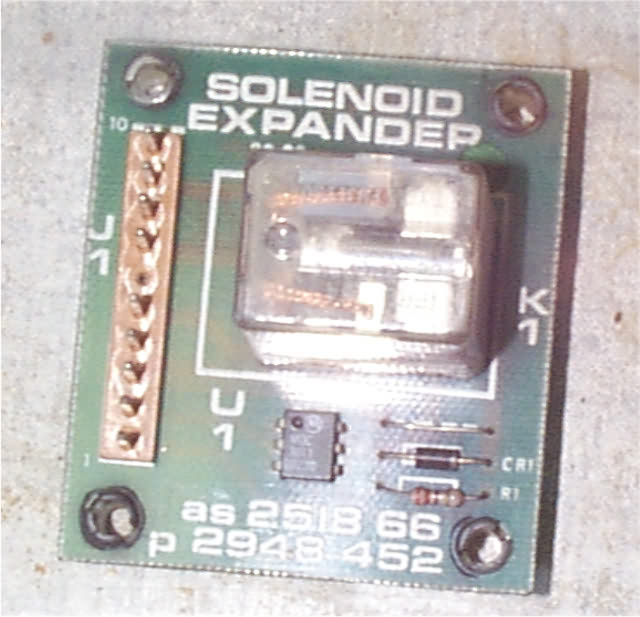

Part No.: AS-2518-66
Listed together in above auction.
Slight downward bend on this side - this pic does not show that very well - I'll try to get a better shot if anyone is interested in this piece.

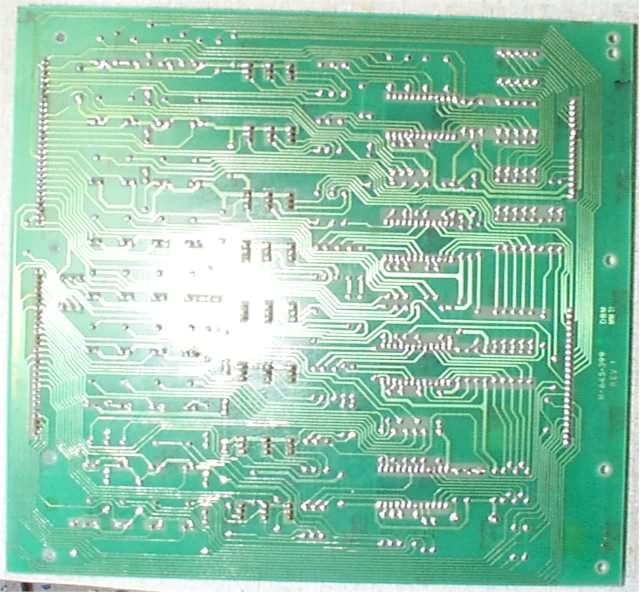

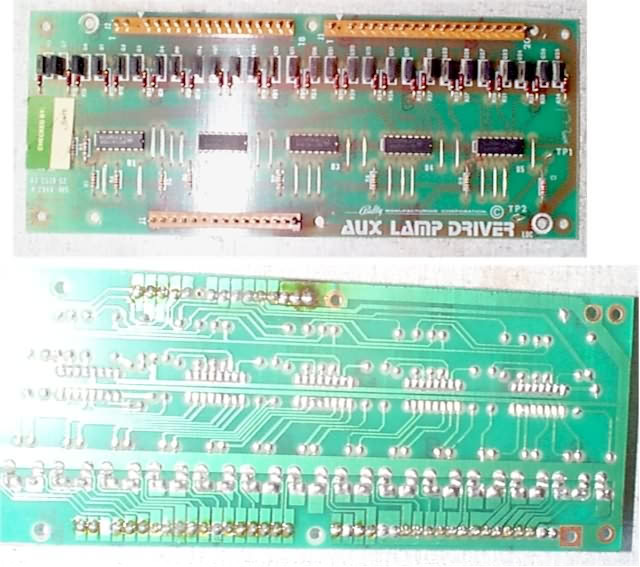

Auxiliary Lamp Driver Board - SOLD
Note some dark areas on the right side of the lower connector.
Part No.: AS-2518-52

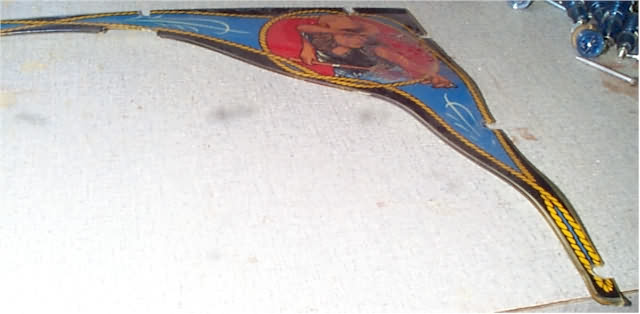

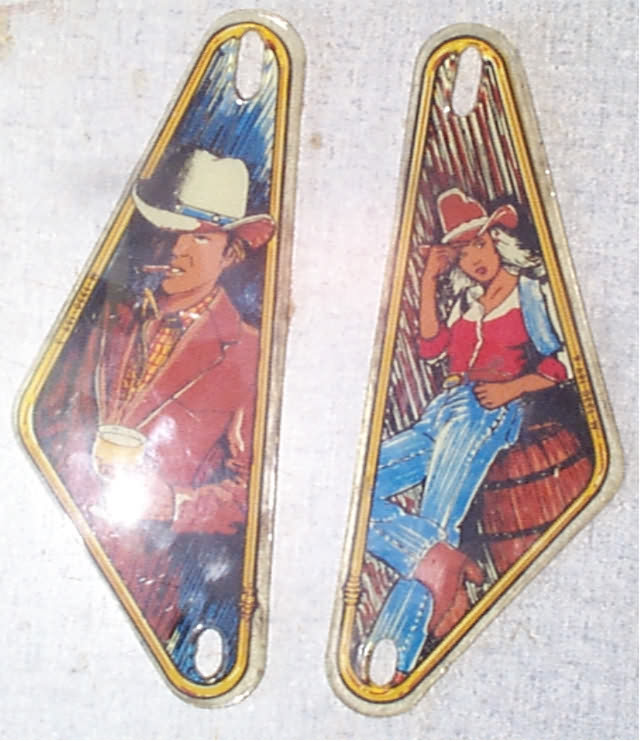

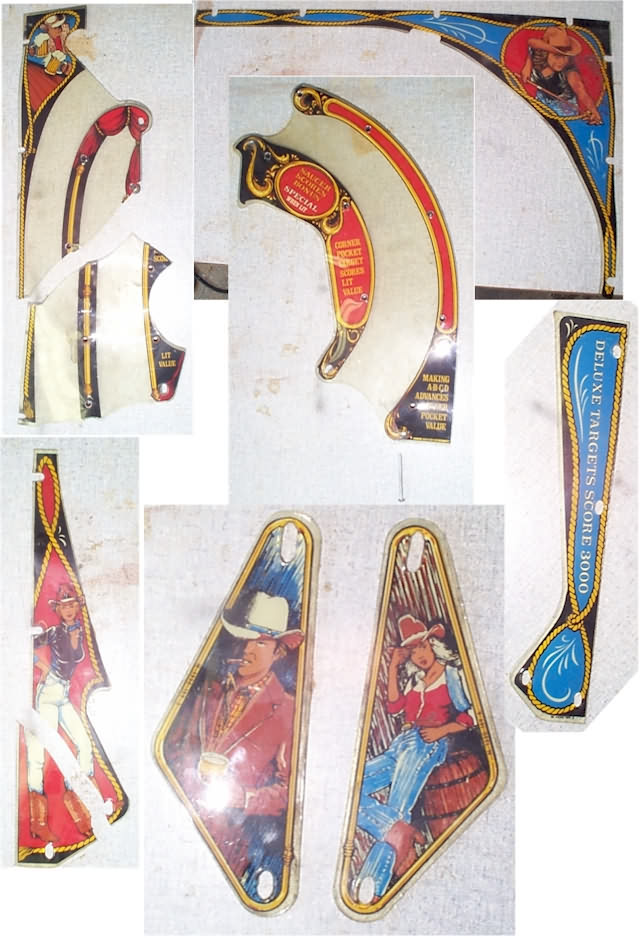

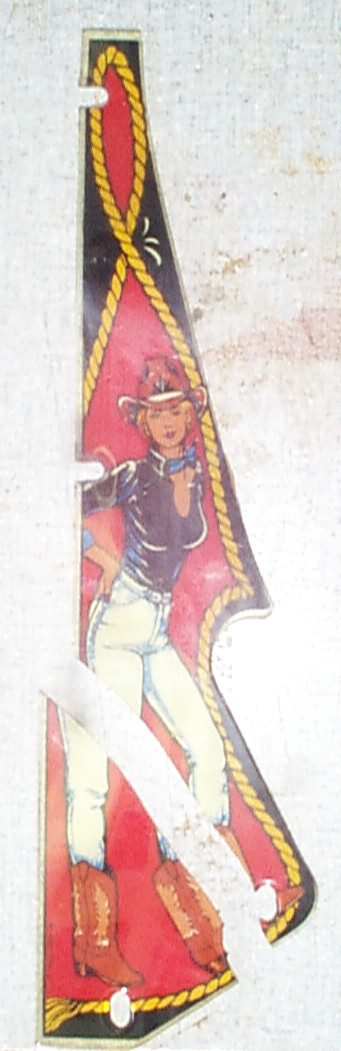

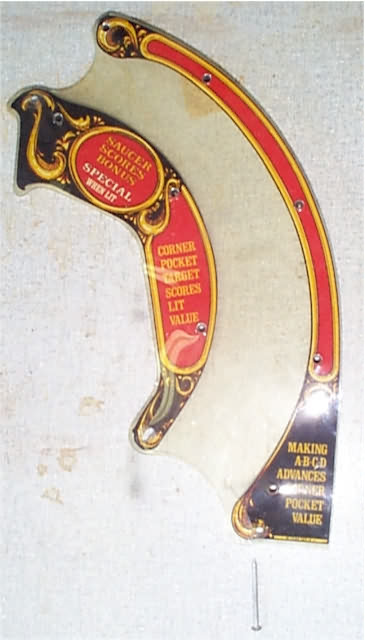

Here's a picture of all the plastics together

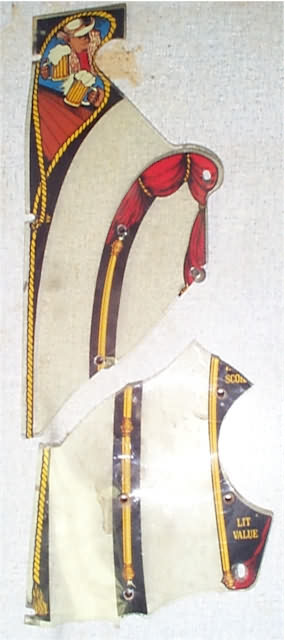

These three pieces are cracked or broken. Note the screw in the first pic points to a crack in the plastic.

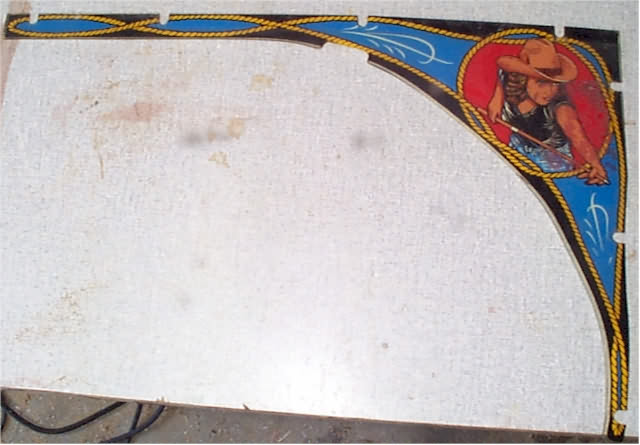

These pieces are in fairly good shape

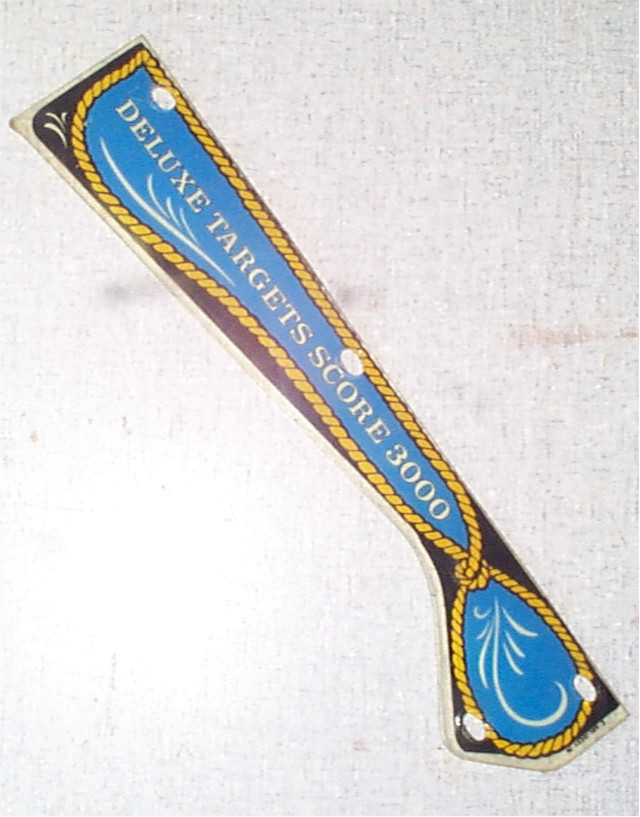

This piece is in good shape except for some waviness as noted in the 2nd pic

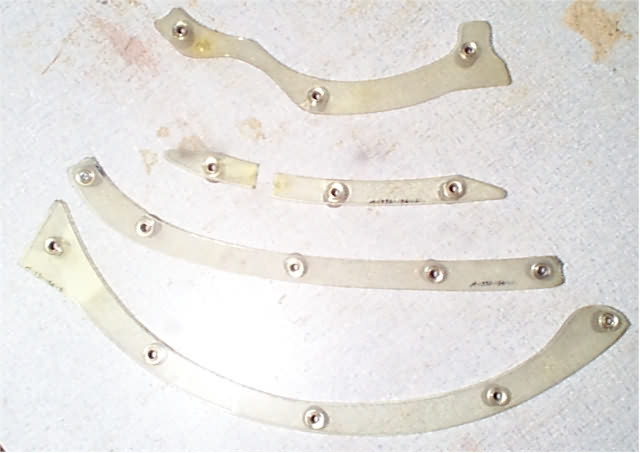

Plastic Rails with metal Inserts - Note one of these is broken. SOLD

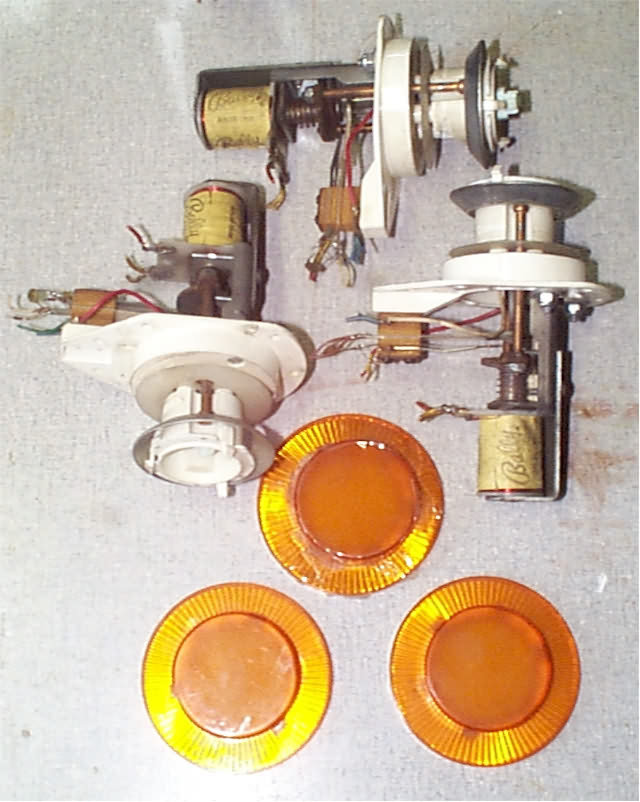

One of these did not work when the machine was working. One of the orange plastic caps (top) is broken and was taped back together previously.

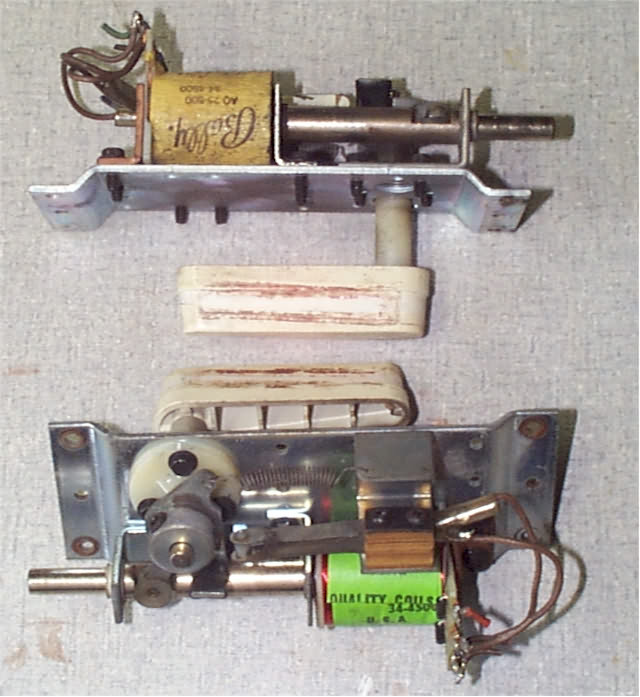

Left & Right Lower Flipper Assys SOLD

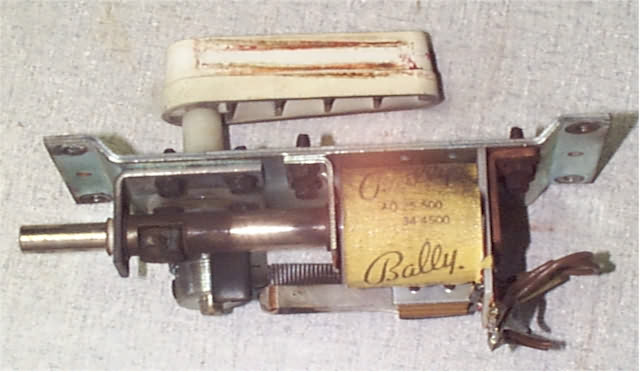

Upper Left Flipper Assy SOLD

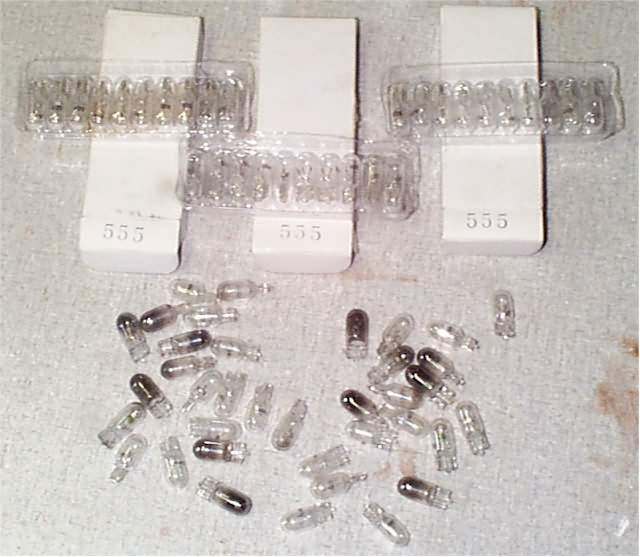

#555 Bulbs NIB - 30 new 555 bulbs and I'll throw in all those that came off the top of the playfield - some worked, some didn't SOLD

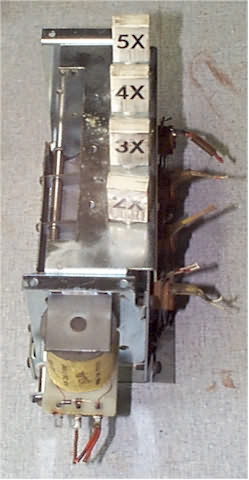

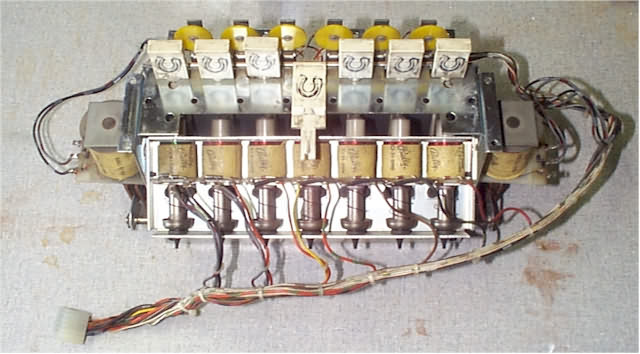

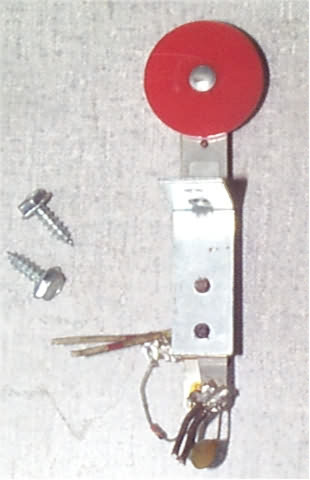

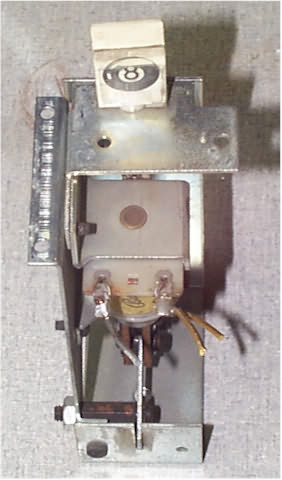

the middle target for the 4 ball is broken into 2 pieces, all others worked when machine was whole.

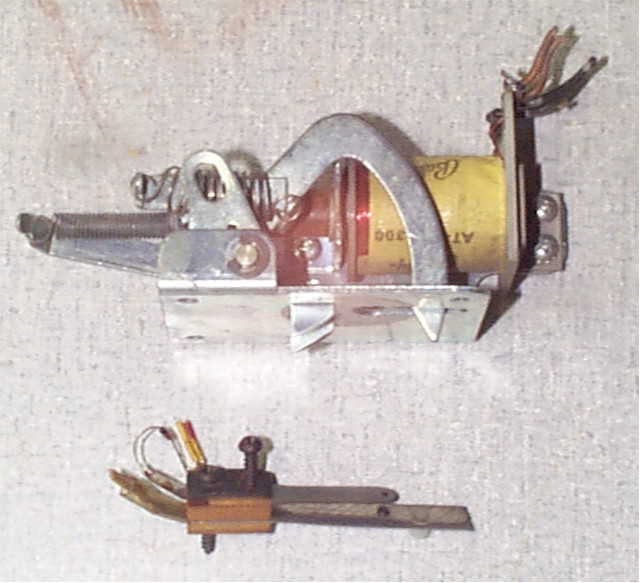

Eight Ball Kickout Assy and Switch SOLD

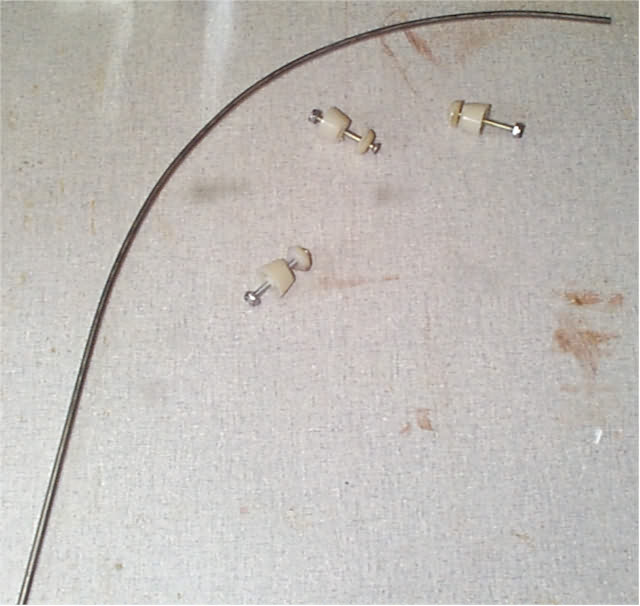

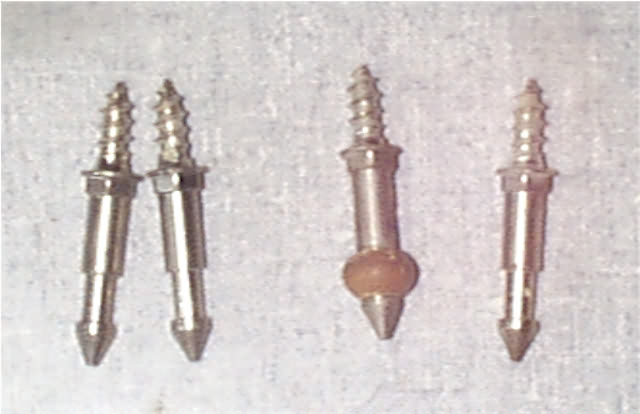

Upper Guide Rail & Mounting Posts - SOLD

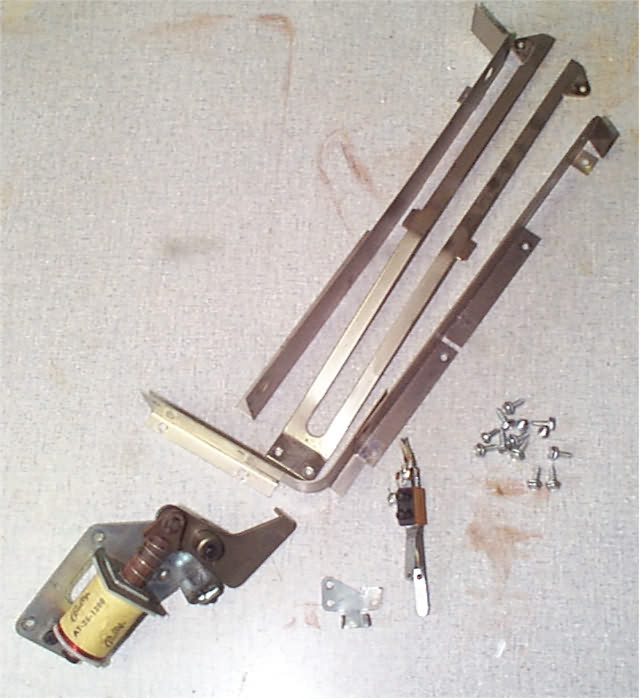

Ball Kickout Solenoid, Switch and 4 metal pieces that make up the ramp and channel SOLD

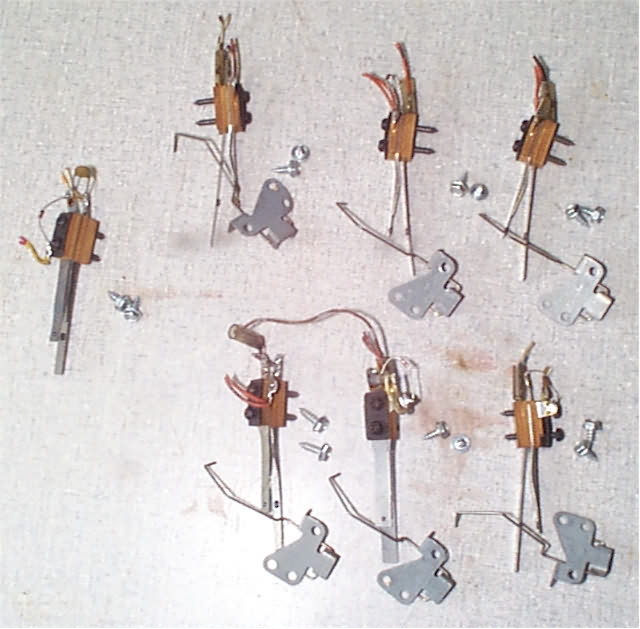

Rollover switches - 6 with wire loop and 1 that was below the round plastic star like piece SOLD

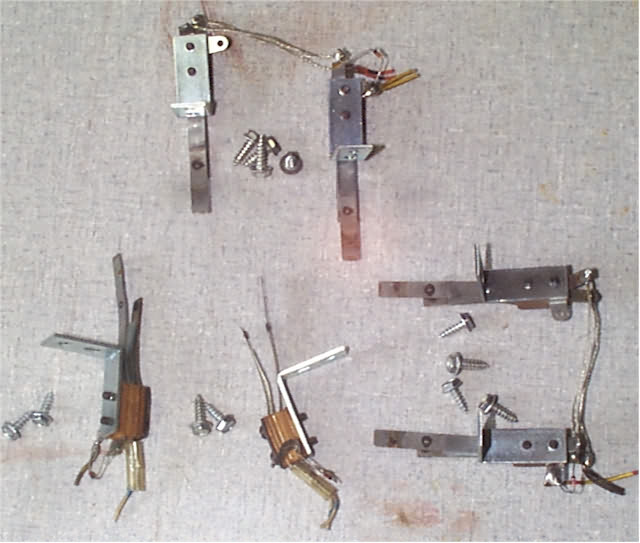

Upright Switches - these are the switches that protrude through the playfield and are behind the rubbers like those in the lower slingshot area. Also includes this gizmo that was mounted underneath the playfield. SOLD

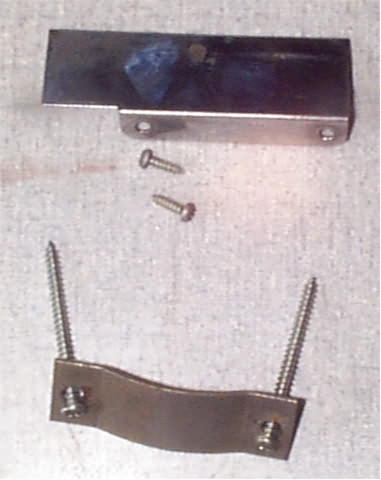

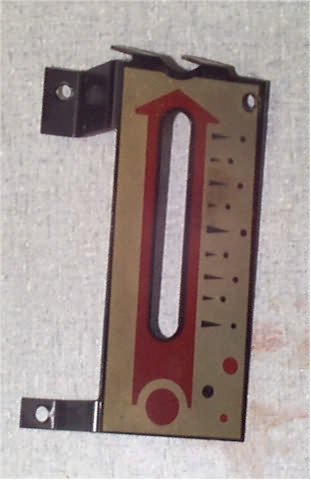

Metal Plate from the right side area where the ball enters the plunger area and also the metal brace that spans the right channel.
SOLD

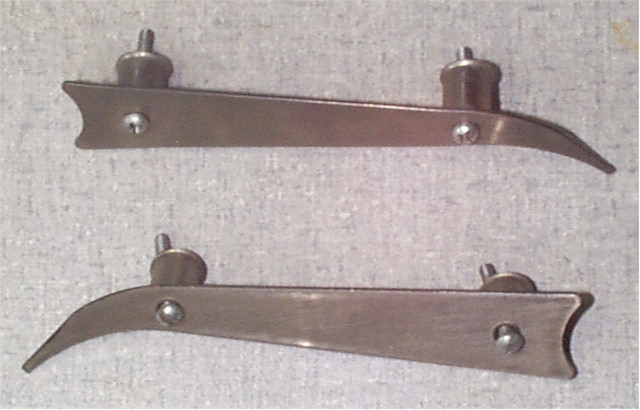

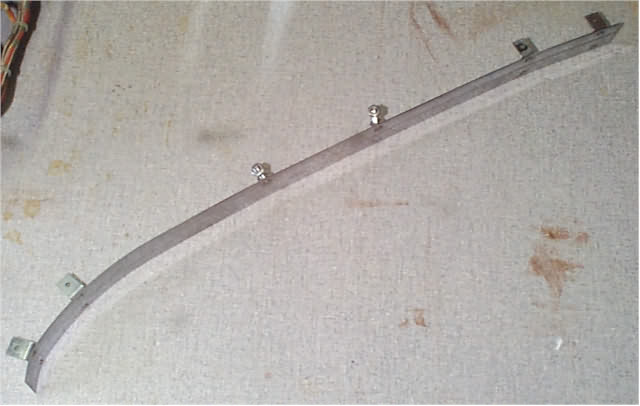

These are the metal rails that are inserted into the playfield behind the flippers and in the side channels - notice one is bent
SOLD

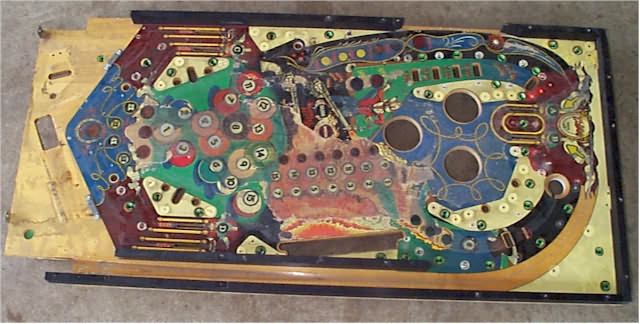

The playfield after removal of most items. The lamp sockets are still on the back side, but no wiring or switches are left.
SOLD

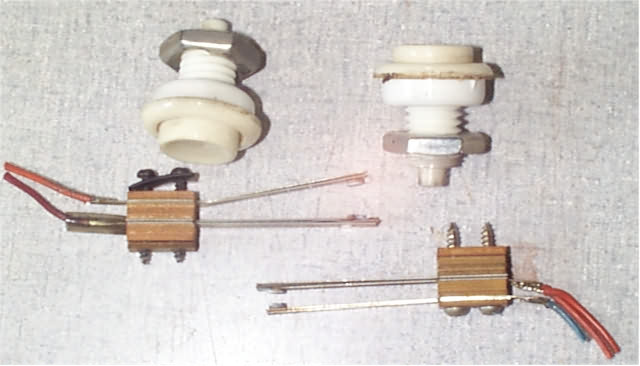

Flipper Buttons and Switches SOLD

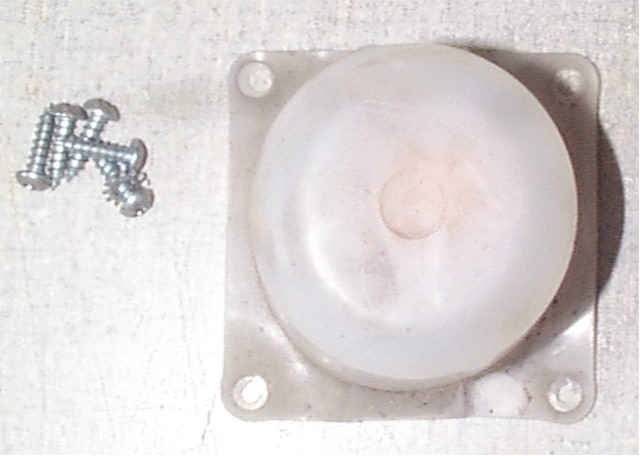

Plastic Cover for main power switch SOLD

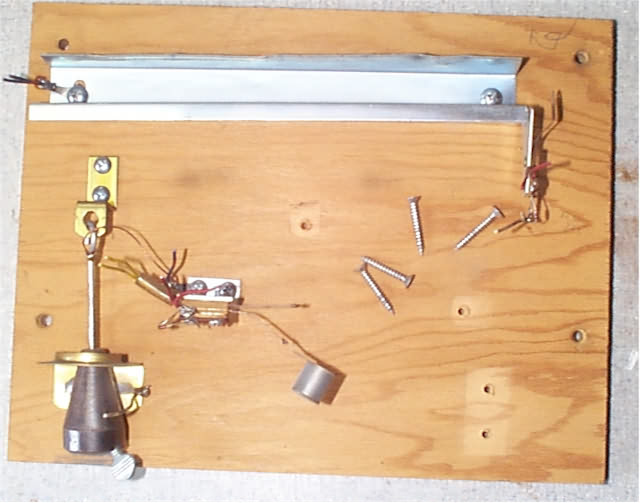

Tilt Mechanism & Switch - SOLD

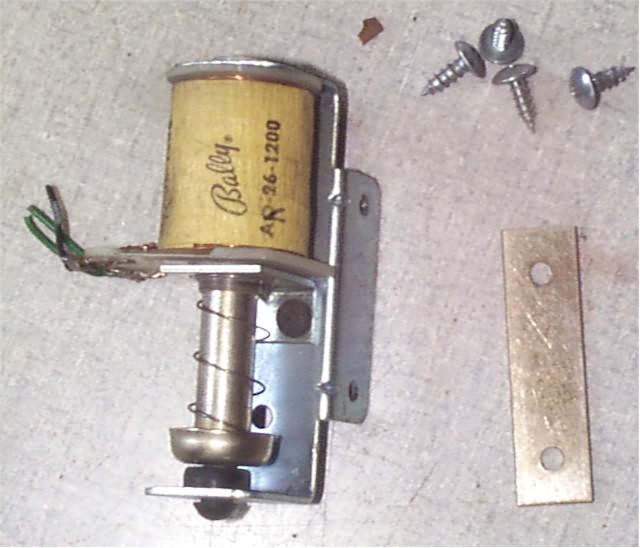

Knocker Solenoid - was mounted in the bottom of the cabinet - I think this for the extra game "pop" but not sure. Also has the metal plate that the solenoid pops against. SOLD

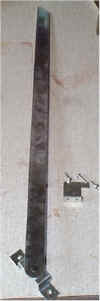

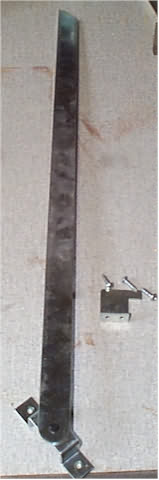

Playfield Prop Bar - this was mounted on the right inside of the cabinet ($5)

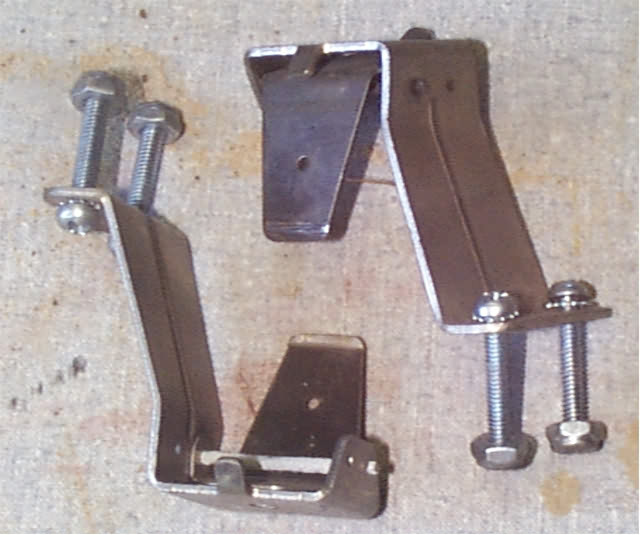

Playfield Support Brackets and Screws ($5)

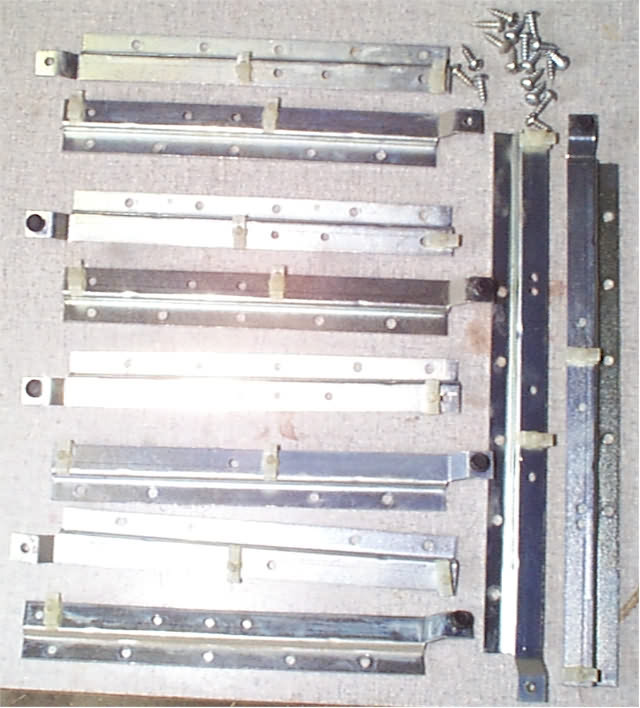

IC Board Mounts - these are the brackets complete with the plastic standoff posts that all the circuit boards were mounted on. ($10)

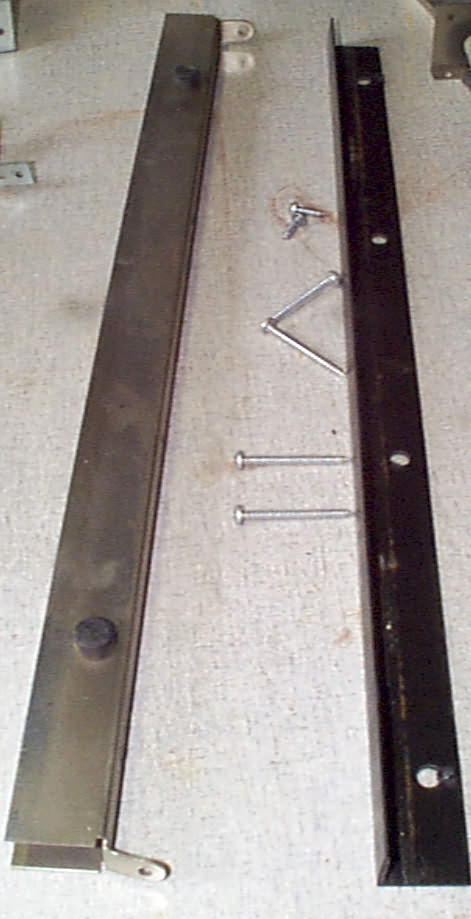

Metal bar that was mounted in the cabinet at the top of the playfield. Also has a black plastic cover piece. ($5)

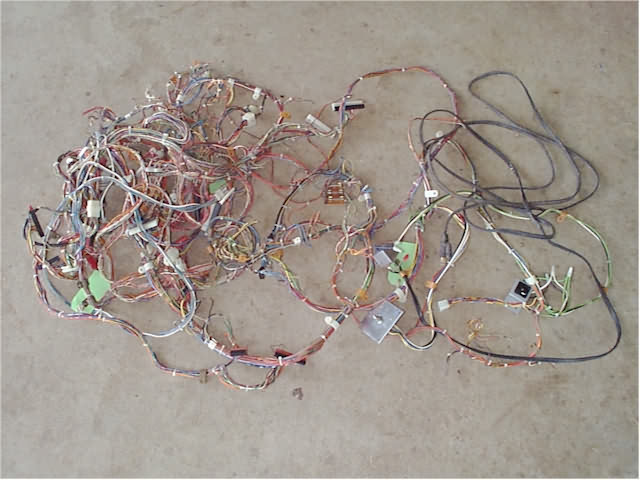

Wiring harness - complete from plug in the wall, main power switch, internal power point plug, a fuse block that was on the bottom of the playfield, etc. SOLD
That's All Folks! Thanks for looking.
